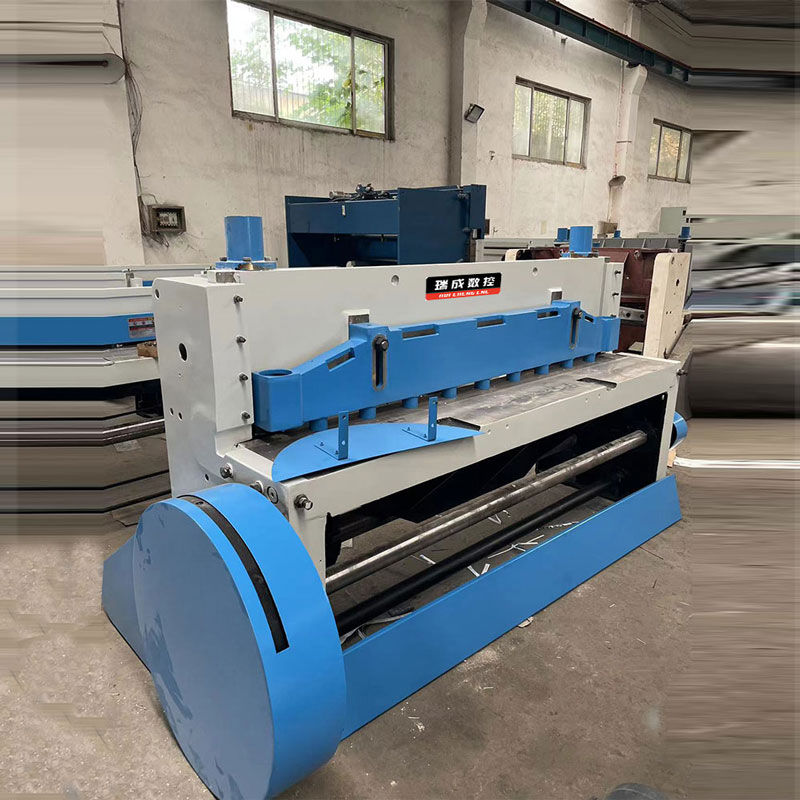

液壓剪板機廠家定制

本機采用液壓傳動，擺式刀架整體焊接結構，剪切精度高，使用性能好，調整輕便迅速，正確可靠。刀架行程可無級調節，設有燈光對線裝置，擋料尺寸數字顯示，使用方便。

產品詳情

液壓剪板機廠家定制

規格型號	剪板尺寸 (T×W)(mm)	剪切角	空行程次數 (次/分)(Time/min)	后檔料架調節范圍 (mm)	主電機功率(KW)	外形尺寸 (mm)
QC12Y-4×2500	4×2500	1 o 30'	≥18	20-600	5.5	3120×1460×1500
QC12Y-4×3200	4×3200	1 o 30'	≥14	20-600	5.5	3820×1720×1620
QC12Y-4×4000	4×4000	1 o 30'	≥10	20-600	5.5	4620×1850×1700
QC12Y-4×5000	4×5000	1 o 30'	≥10	20-600	7.5	5786×2200×2160
QC12Y-6×2500	6×2500	1 o 30'	≥18	20-600	7.5	3140×1540×1570
QC12Y-6×3200	6×3200	1 o 30'	≥14	20-600	7.5	3840×1660×1620
QC12Y-6×4000	6×4000	1 o 30'	≥10	20-600	7.5	4645×1850×1700
QC12Y-6×5000	6×5000	1 o 30'	≥10	20-750	11	5786×2200×2160
QC12Y-6×6000	6×6000	1 o 30'	≥7	20-800	15	6900×2570×2280
QC12Y-8×2500	8×2500	1 o 30'	≥14	20-600	11	3140×1540×1570
QC12Y-8×3200	8×3200	1 o 30'	≥10	20-600	11	3840×1660×1620
QC12Y-8×4000	8×4000	1 o 30'	≥8	20-600	11	4664×1880×1720
QC12Y-8×5000	8×5000	1 o 30'	≥7	20-600	15	5786×2252×2310
QC12Y-8×6000	8×6000	1 o 30'	≥5	20-600	15	6900×2570×2280
QC12Y-10×2500	10×2500	1 o 40'	≥11	20-800	15	3205×2000×1890
QC12Y-10×3200	10×3200	1 o 40'	≥10	20-800	15	3905×2000×1890
QC12Y-10×4000	10×4000	1 o 40'	≥8	20-800	18.5	4705×2150×2000
QC12Y-12×2500	12×2500	1 o 40'	≥11	20-800	18.5	3245×2042×1900
QC12Y-12×3200	12×3200	1 o 40'	≥10	20-800	18.5	3945×2042×1900
QC12Y-12×4000	12×4000	1 o 40'	≥8	20-800	18.5	4745×2192×2050
QC12Y-16×2500	16×2500	2 o 20'	≥8	25-800	18.5	3245×2180×2000
QC12Y-16×3200	16×3200	2 o 20'	≥7	25-800	18.5	3945×2477×2035
QC12Y-16×4000	16×4000	2 o 20'	≥5	30-800	18.5	4850×2350×2300
QC12Y-20×2500	20×2500	2 o 40'	≥6	20-800	30	3260×2452×2000
QC12Y-20×3200	20×3200	2 o 40'	≥5	30-800	30	4150×2450×2300
QC12Y-20×4000	20×4000	2 o 40'	≥4	30-800	37	4855×2600×2400
QC12Y-20×5000	20×5000	2 o 40'	≥4	20-800	37	5900×3000×3300
QC12Y-25×2500	25×2500	3 o	≥5	40-800	37	3500×2500×2360
QC12Y-25×3200	25×3200	3 o	≥4	40-1000	37	4200×2500×2400
